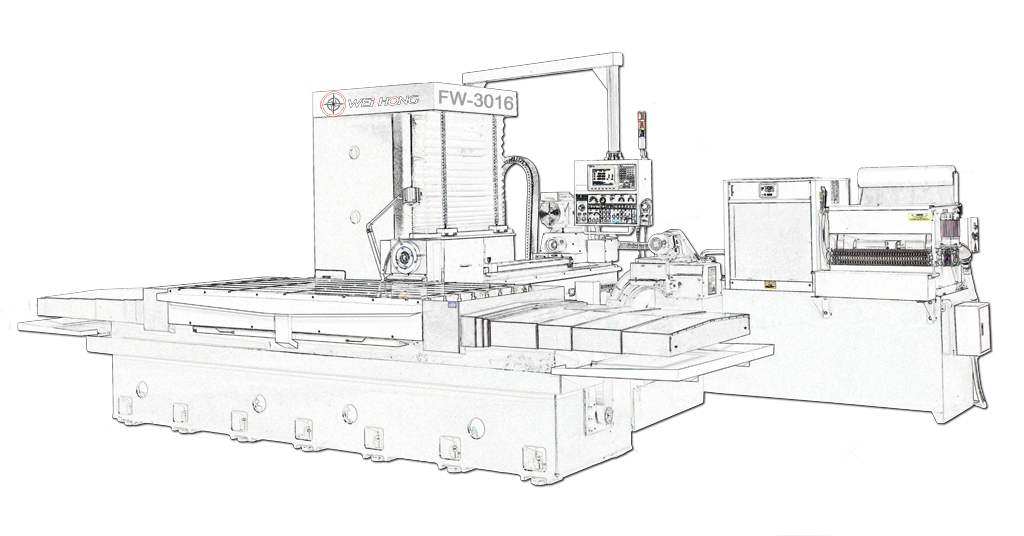

			Gun Drilling Machine
	PW Seires PW300-4DS PW600-4D Custom Machine FW Series FW-1000 FW-1300 FW-2010 FW-2013 FW-2016 FW-2510 FW-2513 FW-2516 FW-3010 FW-3013 FW-3016 BTA Series BTA-2000 BTA-2500 BTA-3000 BTA-2000S BTA-3000S BTA-4000S BTA-5000S BTA-6000S TPA Series TPA-600 TPA-1200 Special Project BTA-500-2D FEB-5050
We are certified under ISO 9001:2008
			Specifications
			Model Drilling capacity of diameter Drilling capacity of depth Working table size Controller Spindle motor Spindle speed Number of spindles X-axis travel Y-axis travel Z-axis travel Table loading capacity	FW-3016 Standard: Ø3~25mm (Optional: Ø4~40mm) Standard: 1500mm (Optional: 2000mm) 1200 x 3270mm MITSUBISHI M64ASM AC servo 7.5 kw 100~8000 rpm 1 3000mm 1600mm Standard: 2000mm (Optional: 2500mm) 21000kgs
	Work Piece				Machining Video
