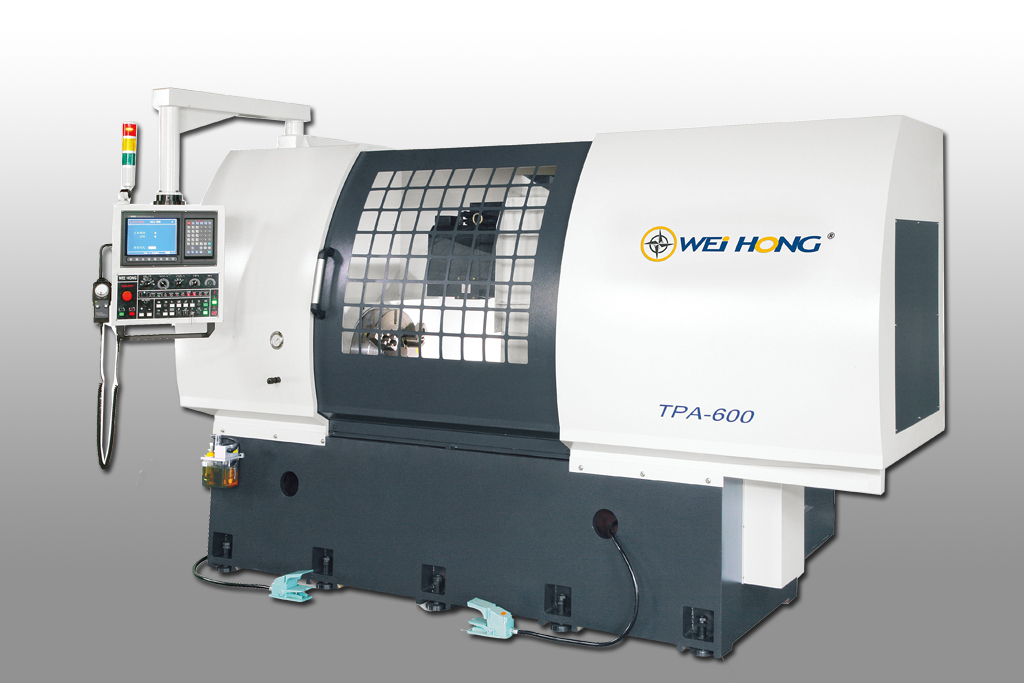

  Trepan Drilling Machine


















      Specifications
      Model
Drilling capacity of diameter

Drilling capacity of depth

Hydraulic 3-jaw chuck
Controller
Spindle motor
Spindle speed
Spindle taper
Number of spindles
Z-axis motor
Z-axis travel

TPA-600
Core-stay: Ø80~250mm
Blind hole: Ø120mm
Unilateral drilling: 300mm
Bilateral drilling: 600mm
Standard: 18" (Optional: 21")
MITSUBISHI M64ASM
AC servo 37.5 kw
10~750rpm
BT-50
1
AC servo 7.0 kw
1200mm


      * The selling right of this machine in North, South America and Europe is carried by Mollart Engineering Limited.

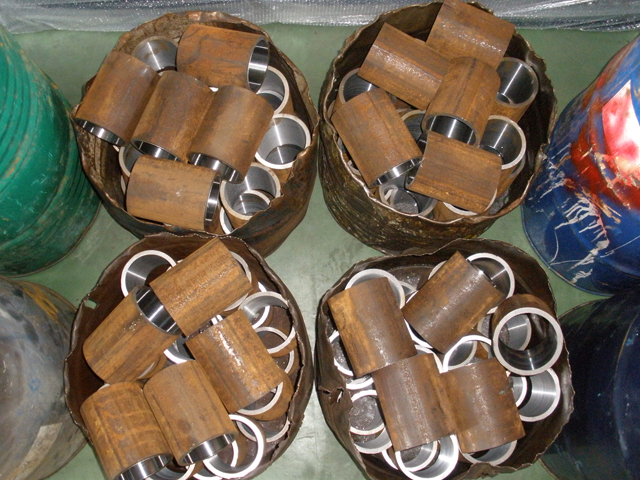

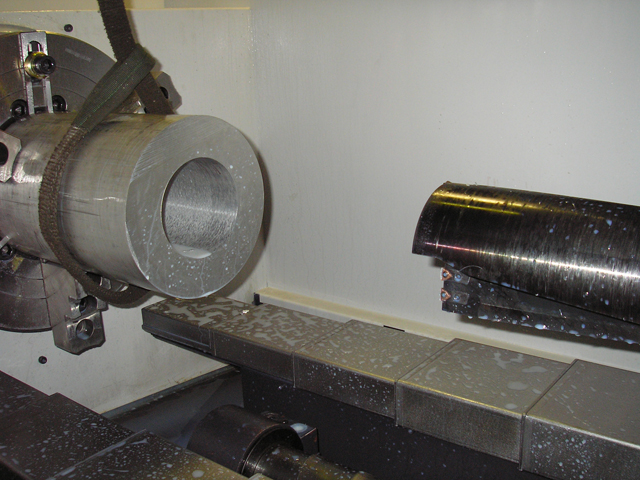

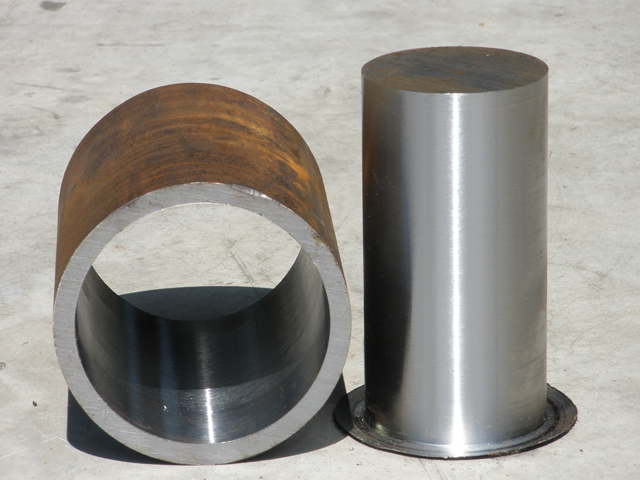

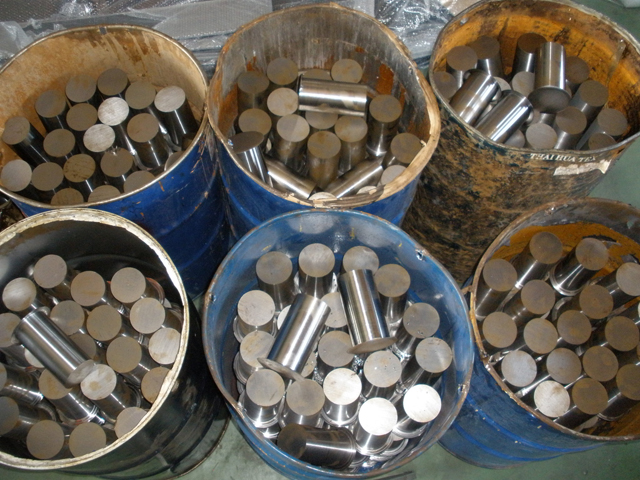

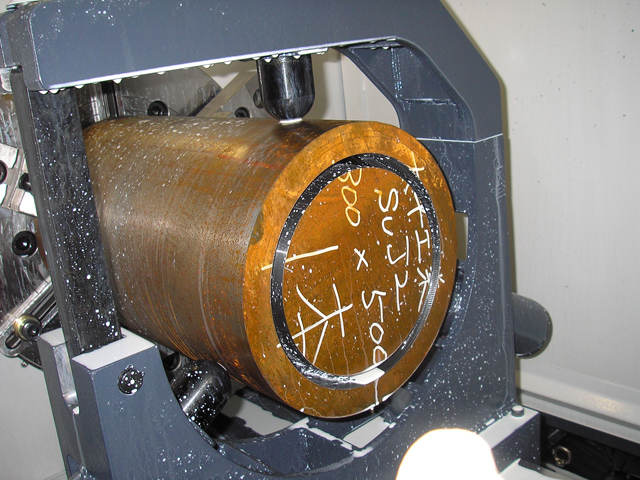

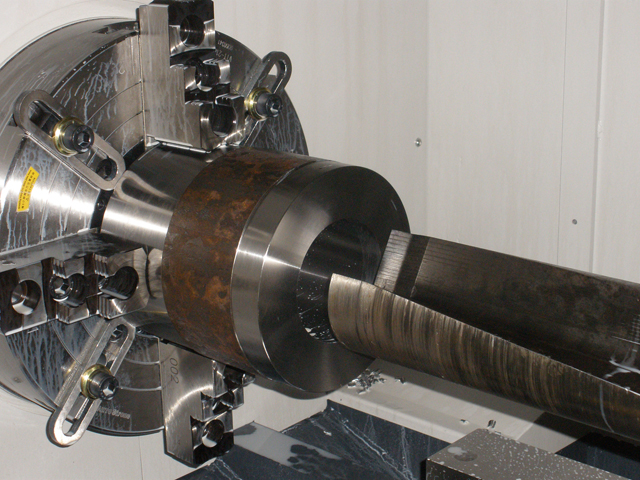

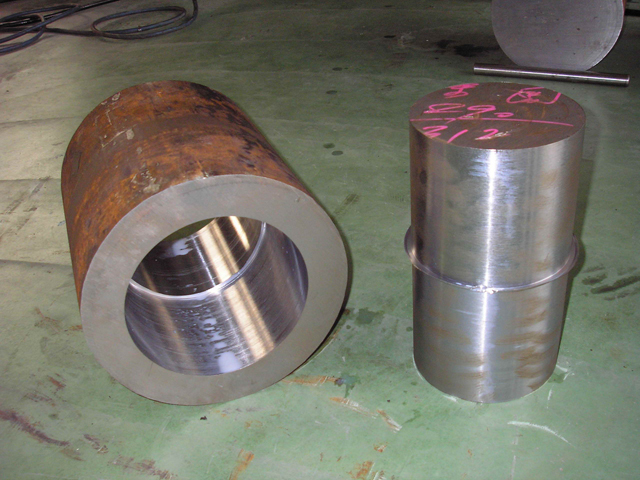

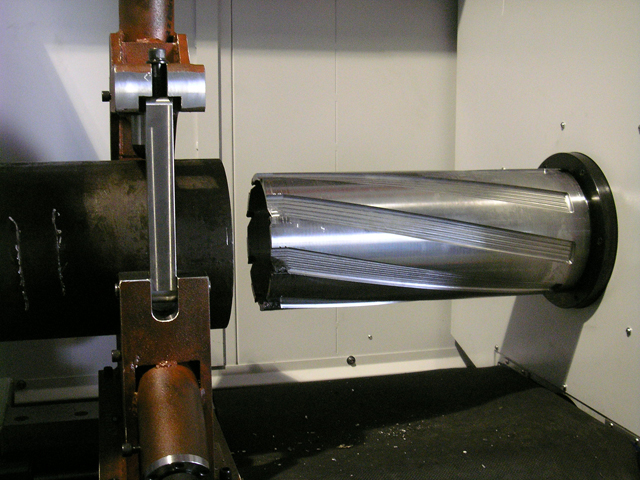

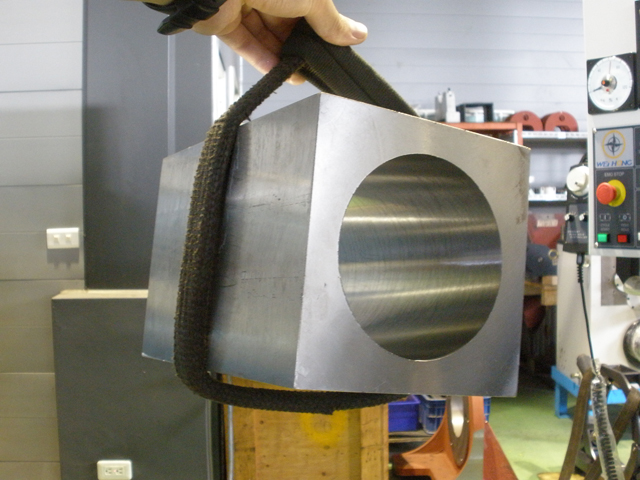

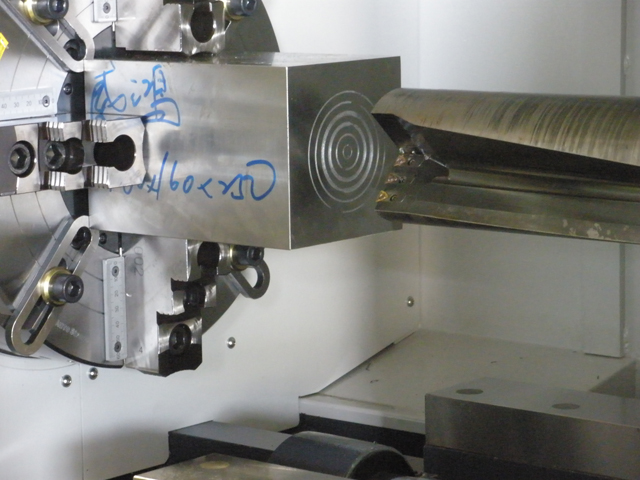

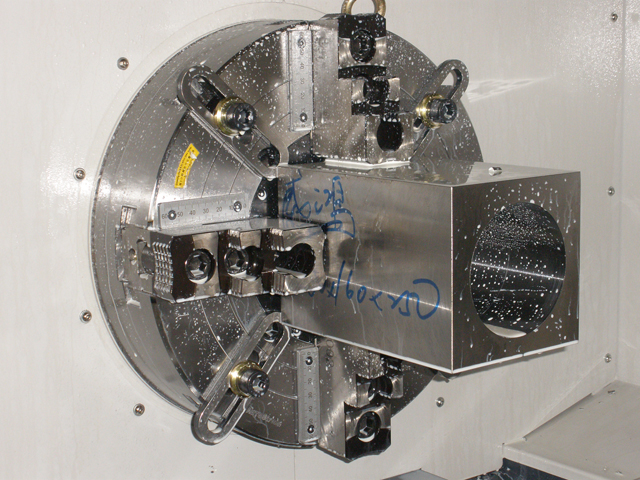

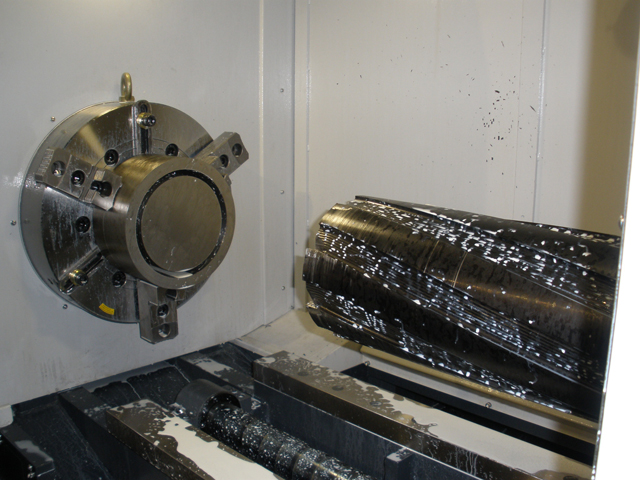

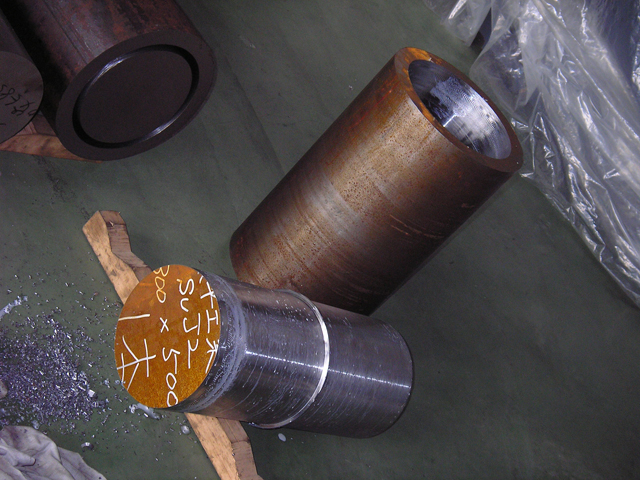

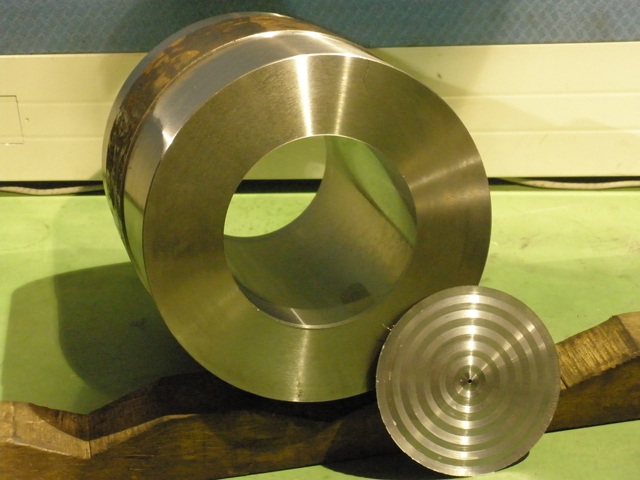

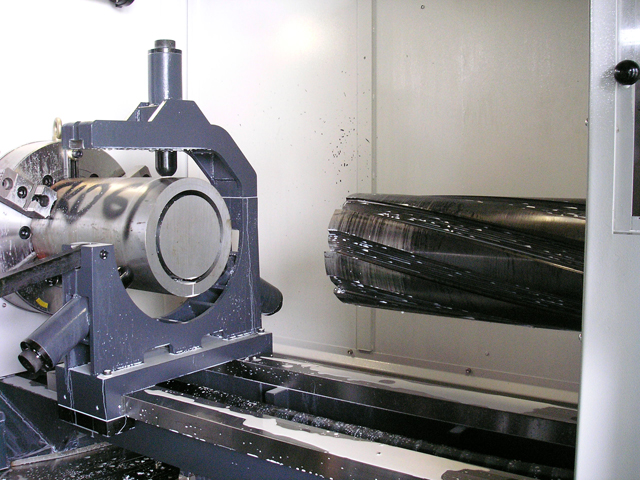

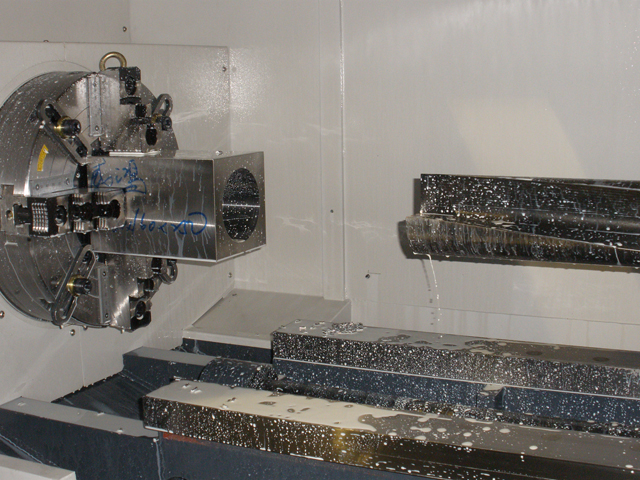

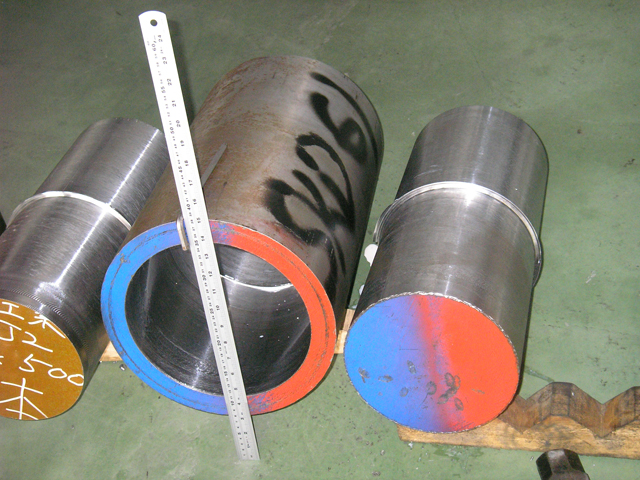

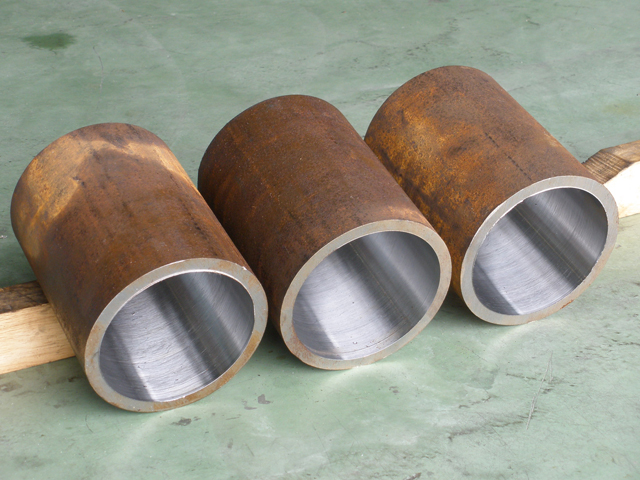

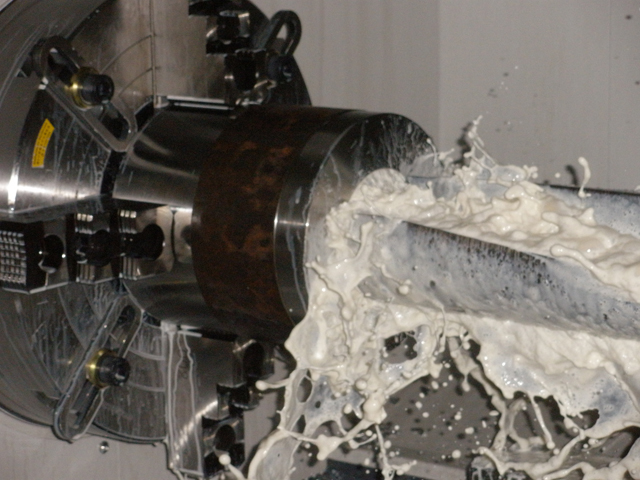

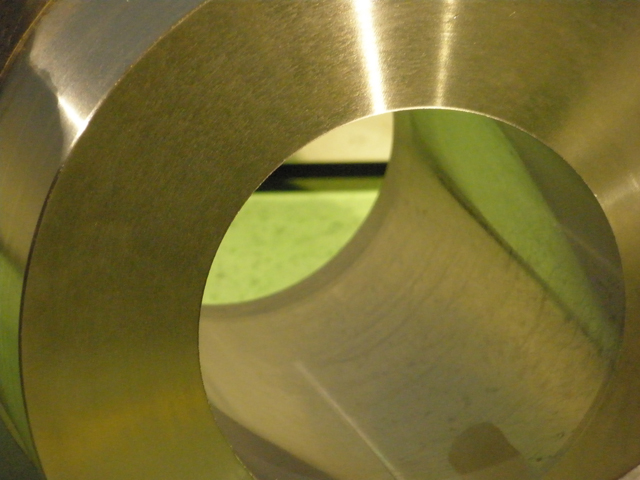

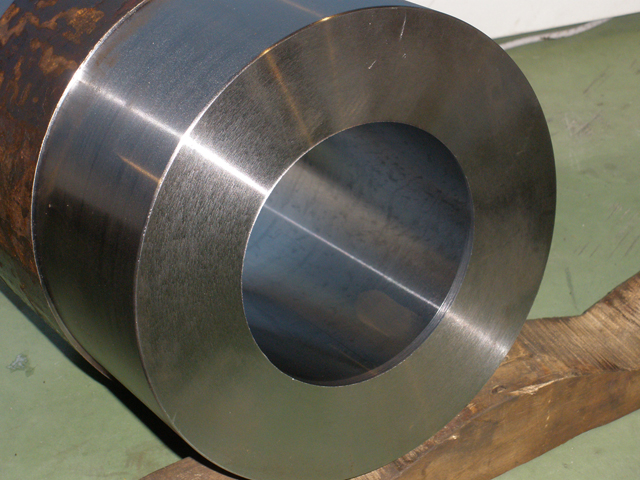

  Work Piece       Machining Video
