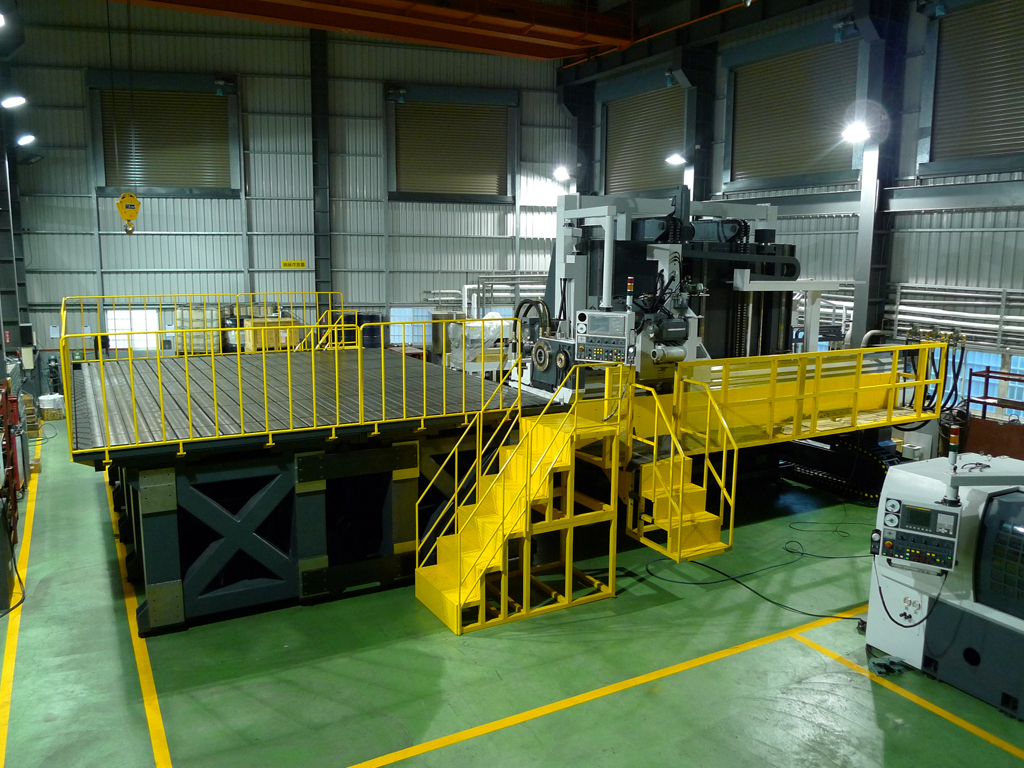

  Moving column type - complex deep hole drilling machine



We are certified under
ISO 9001:2008


















FEB-5050
Specifications BTA drilling system Gundrilling system Milling system
Drilling capacity of diameter
Drilling capacity of depth
Working table size
Controller
Spindle motor
Spindle speed
Table loading capacity
Ø30~100mm
4000mm


AC servo 37.5 kw
10~1200rpm

Ø4~40mm
4000mm
6000 x 4800mm
MITSUBISHI M65
AC servo 11 kw
10~6000rpm
50000 kgs
-
400mm (milling depth)


11kw
50~4000rpm

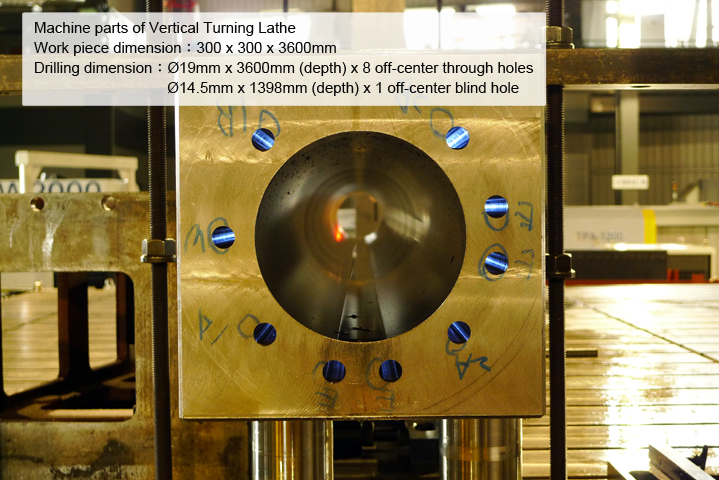

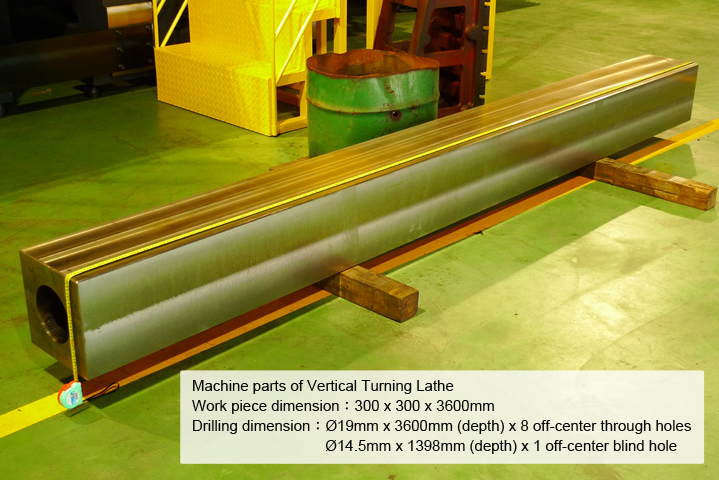

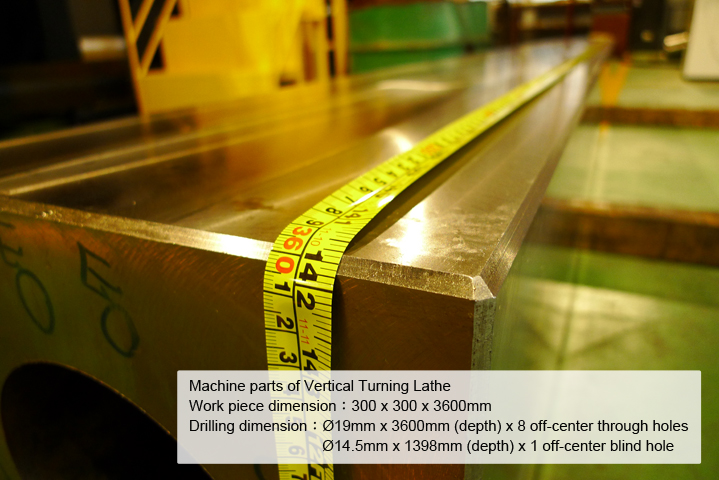

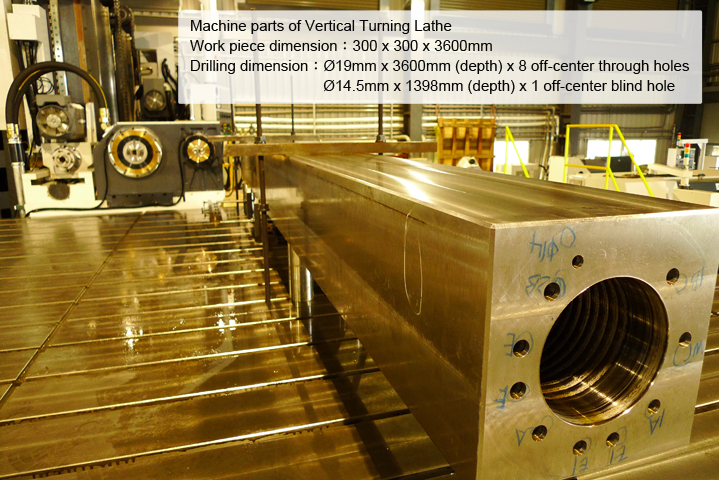

Work Piece     Machining Video
